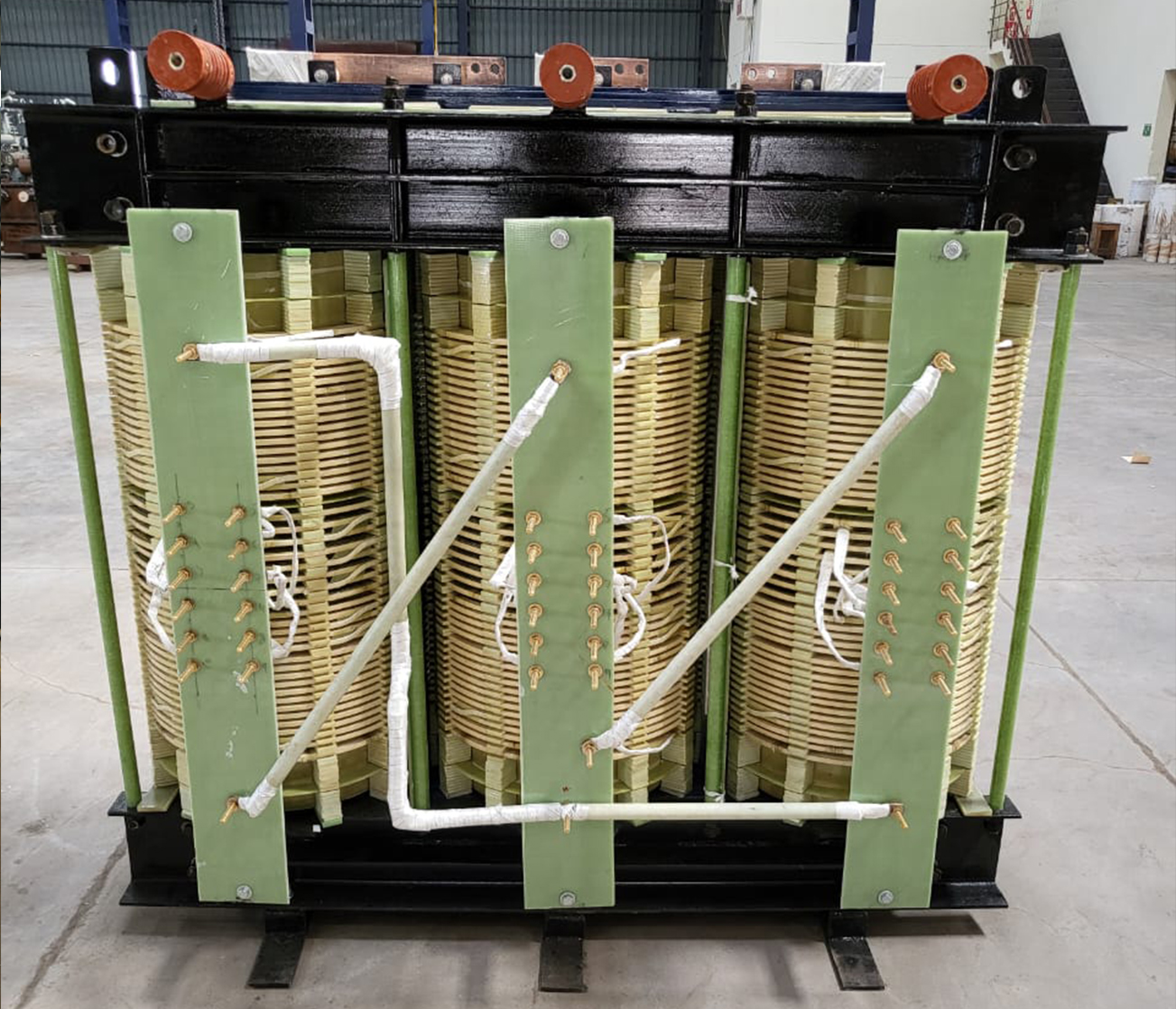

Distribution Transformer (Dry)
Dry-Type Transformers with a voltage class of up to 33 kV and up to 2,500 kVA in VPI & CRT Type.
Key Advantages
Frequency
50 Hz
Phase
Single and Three Phase.
Vector Group
Dyn 11 or as per Customer Needs
Winding Material
Copper / Aluminium
Trapping Range
As per Customer Needs
Class of Insulation
F/H
Losses and Accessories
As per IS 11171/ ECBC Norms
Distribution Transformer (Oil)
Oil-Type Distribution Transformers up to 2,500 kVA with a voltage class up to 33 kV
Key Advantages
Frequency
50 Hz
Phase
Single and Three Phase
Vector Group
Dyn 11 or as per Customer Needs
Winding Material
Copper / Aluminium
Cooling
ONAN
Trapping Range
As per Customer Needs
Class of Insulation
A
Losses and Accessories
As per IS 1180 (Latest Amendments)
Power Transformer (Oil)
Power Transformers up to 20 MVA with a voltage class up to 66 kV
Key Advantages
Frequency
50 Hz
Phase
Single and Three Phase
Vector Group
Dyn 11 or as per Customer Needs
Winding Material
Copper / Aluminium
Cooling
ONAN
Trapping Range
As per Customer Needs
Class of Insulation
A
Losses and Accessories
As per IS 1180 (Latest Amendments)
Inverter Duty Transformer
We specifically design inverter-duty transformers for Wind and Solar Energy applications and provide them with multiple windings on the primary/secondary side of the transformer. We also provide Earth Shield between the HV and LV windings whose purpose is to reduce harmonic and path-to-ground residual resonance.
Our range of IDT varies from up to 18.5 MVA, the precise requirements vary from device to device and from site to site. We offer Inverter Duty Transformers in ONAN and ONAF cooling.
